IXW boundary lubrication thrust gasket

Material Tissue

1. The mixture of modified polyoxymethylene (POM) and lead has high wear resistance and low friction coefficient even in the case of instantaneous oil shortage. There are regular arrangement of oil storage pits with spiral angles on the bearing surface, which must be filled with lubricating grease during assembly.
2. The copper powder layer is 0.2~0.3mm, which has good bearing capacity and wear resistance, and good thermal conductivity can transfer the heat generated during the operation of the bearing in time. The composite material can penetrate into the gap of the copper powder ball, which improves the bonding strength.
3. Low carbon steel 0.4~2.2 to improve the bearing capacity and heat transfer effect of bearings.
4. Copper/tin plating layer, copper plating layer 0.008mm, tin plating layer 0.05mm, so that the bearing has a good corrosion resistance function.

main parameter TECHNICAL DATE

Maximum load	static load	250N/mm2	operating temperature		-40 ℃ ~ +130 ℃
	low speed operation	140N/mm2.	maximum linear velocity	grease lubrication	2m/s
	rotation and swing motion	70N/mm2.		continuous oil supply	5m/s
Maximum PV value		2.8N/mm2.m/s	thermal conductivity		4W(m.K)-1
linear expansion coefficient		11x 10-6K	friction coefficient		0.05~0.20

Application Characteristics

is especially suitable for rotating motion under heavy load and low speed, rocking motion and parts that are often opened and closed under load and are not easy to form fluid lubrication; it can be used for a long time without refueling and maintenance under boundary lubrication conditions, and adding oil in the process can make the bearing The service life can be extended more; the plastic layer on the surface can leave a certain margin during the molding and processing of the shaft sleeve, and it can be processed by itself, in order to achieve better assembly size.
At present, it is mainly used in metallurgical machinery, mining machinery, water conservancy machinery, automobile chassis, construction machinery, agricultural machinery, steel rolling machinery, etc.

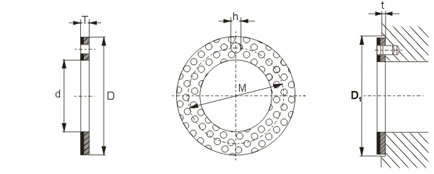

IXW gasket series standard size

Unit:mm
Axle shaft diameter	Code number Code	Washer size gasket size				Install size installation size
Axle shaft diameter	Code number Code	d^0.25	D_-0.25	T_-0.05	M ±0.12	h^0.4 _0.1	t±0.2	D1^0.12
8	IXW10	10	20	1.5	15	1.5	1	20
10	IXW12	12	24		18	1.5		24
12	IXW14	14	26		20	2		26
14	IXW16	16	30		23			30
16	IXW18	18	32		25			32
18	IXW20	20	36		28	3		36
20	IXW22	22	38		30			38
22	IXW24	24	42		33			42
24	IXW26	26	44		35			44
26	IXW28	28	48		38	4		48
30	IXW32	32	54		43			54
36	IXW38	38	62		50			62
40	IXW42	42	66		54			66
46	IXW48	48	74	2	61		1.5	74
50	IXW52	52	78		65			78
60	IXW62	62	90		76			90
